Product Description:

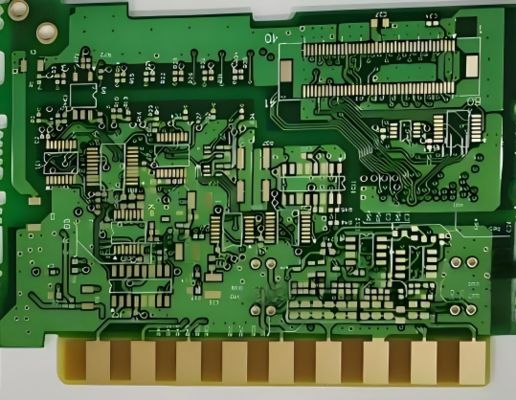

The Copper PCB is a high-quality printed circuit board (PCB) product designed to meet the demanding requirements of modern electronics manufacturing. With a minimum line width and spacing of 0.15mm/0.15mm, this copper PCB board offers precise and accurate circuitry for your electronic devices.
When it comes to thickness, the Copper PCB offers a wide range from 1.0mm to 3.0mm, allowing you to choose the best fit for your specific application. This versatility makes it suitable for various electronic devices and projects, from small gadgets to industrial equipment.
With a surface finishing of immersion gold, the Copper PCB ensures excellent solderability and corrosion resistance. This surface finish enhances the durability and reliability of the PCB, making it ideal for long-term use in a wide range of electronic applications. And gold fingers (also known as edge connectors) are vital components across numerous industries. The gold plating is used for its superior conductivity, corrosion resistance, and high wear resistance, making it ideal for connections that must be inserted and removed frequently or require highly reliable, long-term contact.
Do you have a specific project in mind that requires gold fingers, or would you like to know more about the different types of gold plating used for edge connectors? Please contact us.
Technical Parameters:
| Product |
4 layer copper PCB board |
| Copper thickness |
2/2/2/2OZ |
| Impedance Control |
YES |
| Thickness |
1.6mm |
| Min. Line Width/Spacing |
0.15mm/0.15mm |
| Minimum Hole Copper |
25um |
| Application |
Electronics Device |
| Soldermask |
Green |
| Technology |
Chamfer, Hole Plug Soldermask |
| Surface Finish |
Immersion gold |
